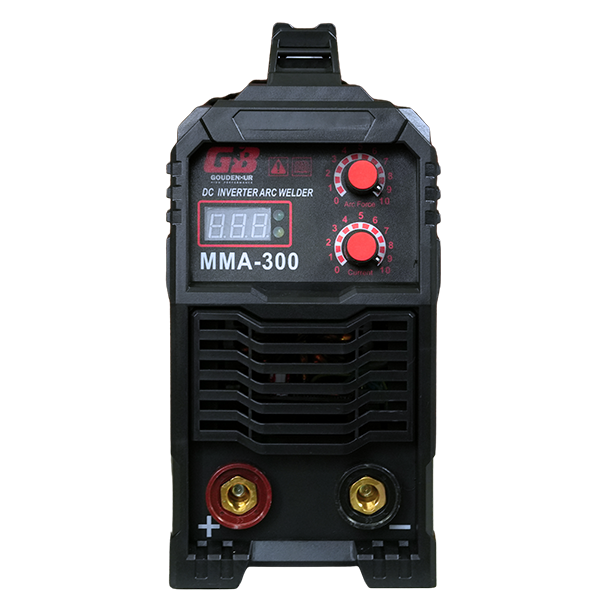

MMA 300 GB Red Series

Input Voltage (V) : 1 Phase 220V 50/60Hz
Input Capacity (KVA) : 15.0
No-load voltage (V) : 60
Output Current Range (A) : 30-280A
Duty Cycle (%) : 60%
Effeciency (%) : 85
Protection Class : IP21S
Insulation Class : F
Applied Electrodes (mm) : 1.6-5.0
Machine Size (mm) : 370x165x280
Packing Size (mm) : 435x235x350
Weight (Kg) : 10
