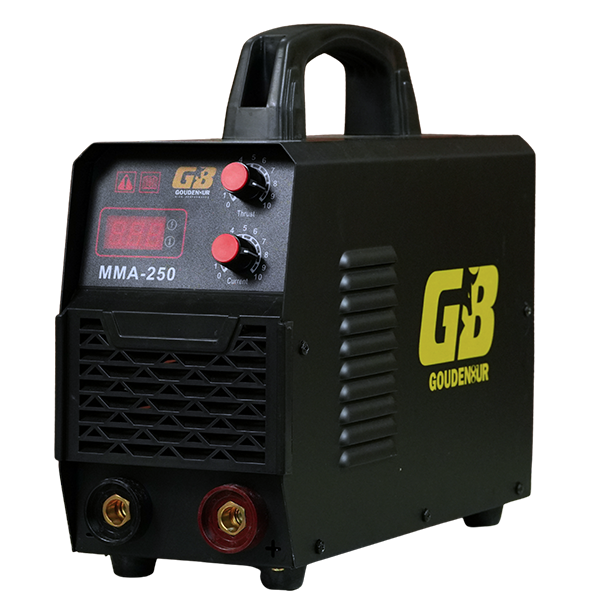

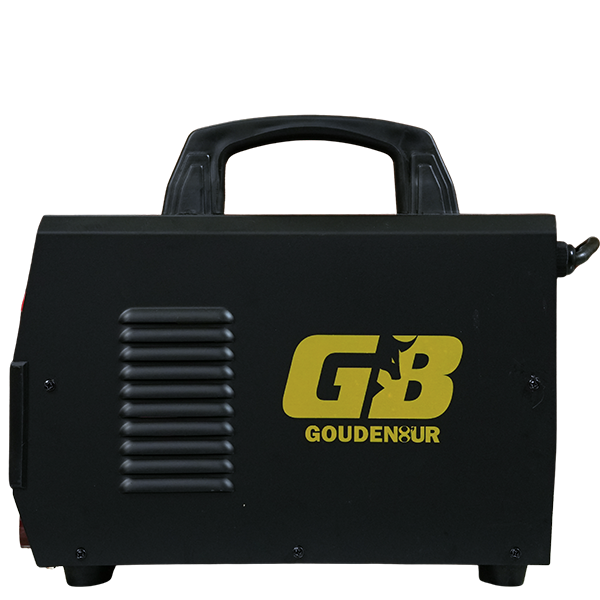

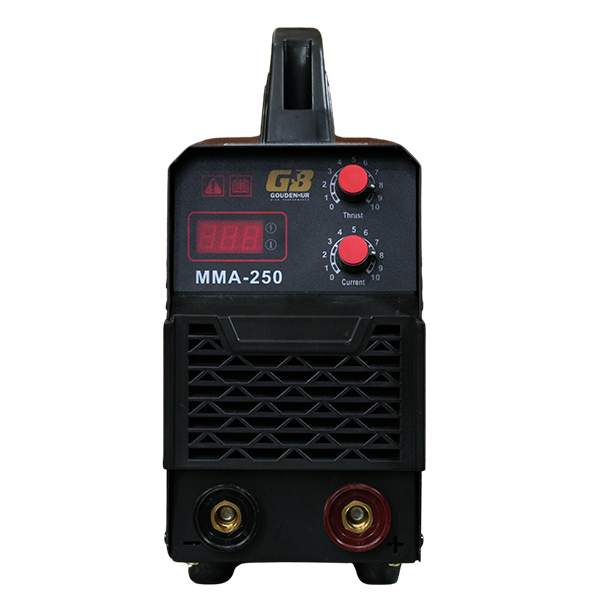

MMA 250

Input Voltage : 1 Phase 220V /
3 Phase 380V 50/60Hz
Input Capacity(KVA) : 12.8
No-load Voltage(V) : 60
Output Current Range(A) : 30-250
Duty Cycle(%) : 60
Efficiency(%) : 80
Protection Class : IP21S
Insulation Class : F
Applied Electrodes(mm) : 1.6-5.0
Machine Size(mm) : 440x190x375
Packing Size(mm) : 500x260x390
Weight(Kg) : 10
